Newton Thermostatic Shower Valve | Chrome Concealed TMV2
Dispatch within 24 hours
Chrome Newton Thermostatic Shower Valve – Concealed TMV2 Control, Stable Temperature

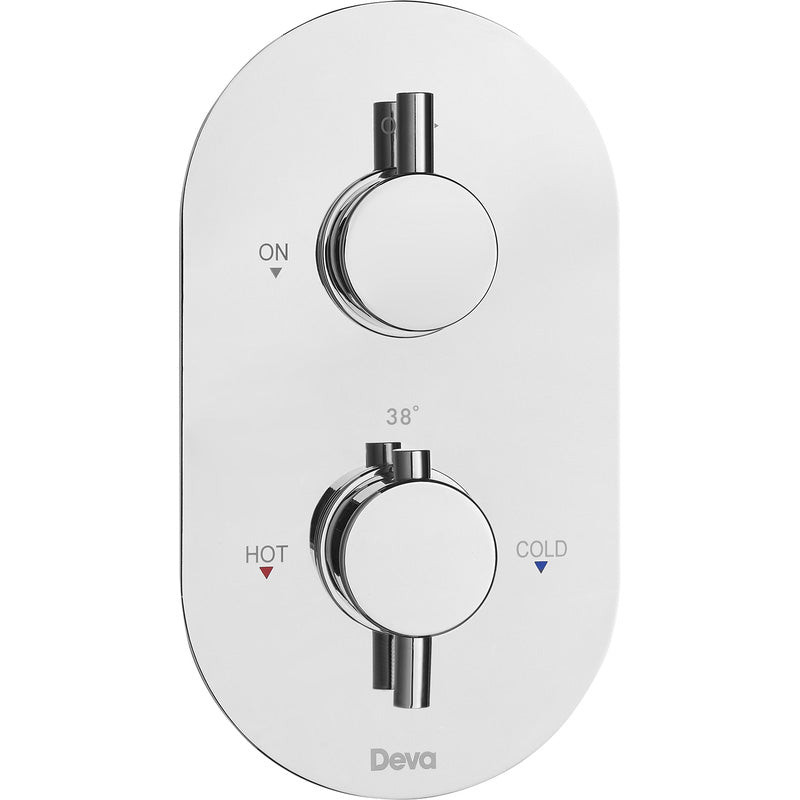

The Deva Newton is a concealed thermostatic shower valve that puts nothing on the wall but a polished chrome plate and two controls. The valve body is buried in the wall, which is why it looks so clean: no exposed pipework, no bar valve sitting proud of the tiles, just a flush faceplate and a pair of levers.
The two controls are concentric and do separate jobs — one sets flow, the other sets temperature — so you can turn the shower off and back on again at the same heat rather than hunting for it each time. The 38 °C safety stop takes a deliberate press to pass, which is what makes this valve sensible in a family bathroom or anywhere older relatives shower.
Inside, a thermostatic cartridge sits in a solid brass body and holds the set temperature when the supply moves under it — a toilet flushing, a kitchen tap running, the boiler cycling. It also shuts the shower down if the cold supply fails. For Irish homes on a gravity-fed cylinder this concealed shower valve is rated from 0.2 bar, low enough to work where many thermostatic valves will not.
One thing to be clear about before ordering: concealed means the wall has to be opened up. This is a valve for a bathroom being retiled or built, not a Saturday swap. It is WRAS and TMV2 approved, takes ¾″ inlets and feeds a single outlet, so you will also need a shower head and hose or a rail kit. We do not stock shower wastes, fixed shower arms or shower trays — the valve, a rail kit and your existing drainage is the usual combination.
Features & Benefits
- Thermostatic shower valve control – holds the set temperature when other outlets in the house are used.
- 38 °C safety stop – guards against scalding, with a deliberate override for a hotter shower.
- Automatic cold-failure shut-off – the shower stops rather than running hot if the cold supply drops.
- Concealed chrome faceplate – valve body hidden in the wall, only a flush plate and two controls on show.
- Separate flow and temperature controls – switch the shower off and back on without resetting the heat.
- Solid brass body – corrosion-resistant and rebuildable, rather than a sealed plastic cartridge housing.
- Works from 0.2 bar – suits gravity-fed Irish cylinder systems as well as high-pressure mains and combi supplies.
- Flow rate up to 38.2 L/min – enough to drive a large single-outlet head at mains pressure.
- WRAS and TMV2 approved – certified to the standard that governs thermostatic mixing in domestic settings.
- 5-year Deva guarantee – terms vary by manufacturer across our catalogue rather than by quality tier; Deva backs its taps for 12 years and its valves for 5.
Product Specification
| Brand | Deva |
|---|---|
| Model Name | Newton |
| SKU | NTN1D-49060 |
| Product Type | Shower Valve |
| Mount Type | Concealed, wall-mounted |
| Control Type | Concentric dual control — flow and temperature |
| Finish | Polished chrome |
| Material | Solid brass body with chrome faceplate |
| Cartridge | Thermostatic, pre-installed |
| Outlets | 1 |
| Min Pressure | 0.2 bar |
| Max Pressure | 5 bar |
| Pressure Suitability | Low and high pressure systems |
| Flow Rate | Up to 38.2 L/min |
| Inlet Connection | ¾″ |
| Max Hot Water Temperature | 60 °C |
| Safety Stop | 38 °C with manual override |
| Weight | 2245 g |
| Manufacturer ID | NTN1D |
| Certification | WRAS and TMV2 approved |
| Guarantee | 5 years |
What's Included
- 1 x Newton thermostatic shower valve body, single outlet
- 1 x Polished chrome faceplate with concentric control set
- 1 x Thermostatic cartridge, pre-installed
- 1 x Installation and care guide
Why Choose the Chrome Newton Thermostatic Shower Valve?
Chrome is the only finish we stock this valve in, and for a concealed valve that is less of a compromise than it sounds — the faceplate is the only visible part, and chrome sits quietly against almost any tile. If you want a matt black shower, the matt black slide rail kit is where the finish shows, and it will run happily from a chrome valve behind the wall.
This valve is the top of our shower range at €95, and the step down is a large one: a chrome slide rail shower kit connects to an existing outlet for a fraction of the cost and needs no building work at all. That is the genuine alternative — choose the concealed Newton if the bathroom is being retiled anyway and you want thermostatic safety, and the rail kit if you want a better shower this weekend. If the shower is over a bath rather than in a cubicle, skip the valve entirely: the Victorian Tudor bath shower mixer and the Kinlin chrome waterfall bath shower mixer both include a diverter, handset and hose, so no separate valve is needed.
We deliver throughout the Republic of Ireland — Dublin, Cork, Galway, Limerick, Waterford and beyond — free on orders over €100, typically within 2–3 working days, with same-day Dublin collection available on stocked items by arrangement. Compare the full range in showers and valves.
